阶梯蛋鸡笼

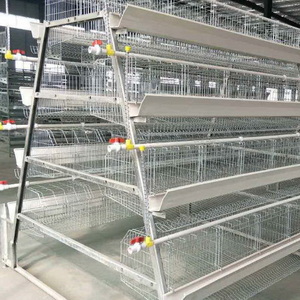

A型阶梯蛋鸡笼/A-type ladder laying hen cage
● A型阶梯蛋鸡笼养设备是河南喜来亚生态农牧科技有限公司设计的一款高性价比鸡笼，设备结构简单，易于安装，后期维护成本低廉，通风效果好，对于各类地区的饲养环境均可适配。依据良好的自然通风和环境，保证最大养殖量。笼体可设计3-5层。按照客户要求配置清粪和喂料设备，更快的实现设备安装和投产。
● The A-type ladder laying hen cage equipment is a cost-effective chicken cage designed by Henan Xilaiya Ecological Agriculture and Animal Husbandry Technology Co., Ltd. The equipment has a simple structure, is easy to install, has low maintenance costs in the later stage, and has good ventilation effects. It can be adapted to the breeding environment in various regions. Based on good natural ventilation and environment, the maximum breeding volume is guaranteed. The cage can be designed with 3-5 layers. Manure cleaning and feeding equipment are configured according to customer requirements to achieve faster equipment installation and production.
.
●PVC材质加厚食槽，不仅更耐用，而且易于清洗，确保鸡群的饮食卫生和健康。食槽设计合理，有效防止饲料浪费，进一步提高饲养效率。此外，设备还配备了先进的自动化控制系统，可实现精准的饲料分配和环境调控，为养殖户提供更加便捷、高效的管理方案。河南喜来亚生态农牧科技有限公司致力于为客户提供优质、可靠的养殖设备，帮助实现高效、可持续的养殖经营。；
● The thickened PVC trough is not only more durable but also easy to clean, ensuring the hygiene and health of the chickens. The trough is reasonably designed to effectively prevent feed waste and further improve feeding efficiency. In addition, the equipment is equipped with an advanced automatic control system that can achieve precise feed distribution and environmental regulation, providing farmers with a more convenient and efficient management solution. Henan Xilaiya Ecological Agriculture and Animal Husbandry Technology Co., Ltd. is committed to providing customers with high-quality and reliable breeding equipment to help achieve efficient and sustainable breeding operations.
●笼网采用合金丝焊接成型，耐腐蚀性强；也可以采用热寖锌的表面处理工艺，使用年限更好。笼网整体结构合理，底网角度7-8°，能有效的将鸡蛋滚动至蛋托处，而且不会使鸡蛋的滚动速度过大，造成鸡蛋的破损，裂纹。
●The cage net is welded with alloy wire, which has strong corrosion resistance; it can also use hot-dip galvanizing surface treatment process to have a better service life. The overall structure of the cage net is reasonable, and the bottom net angle is 7-8°, which can effectively roll the eggs to the egg holder without causing the eggs to roll too fast, causing damage or cracks.
●整体框架是辊压制作成型，无焊点，全组装模式，耐腐蚀性更好
●The whole frame is formed by roll forming, no welding points, full assembly mode, better corrosion resistance

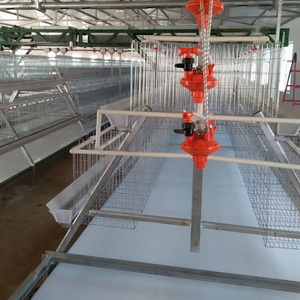

●水线安装的锥阀饮水器，保证水量的同时减小漏水的风险。
● The cone valve drinking fountain installed on the water line ensures water quantity while reducing the risk of leakage.

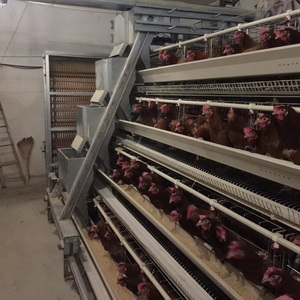

自动化蛋鸡笼养设备/Automated laying hen cage equipment
●集蛋器，可以自动集蛋系统，由鸡舍尾部通过鸡蛋传送带传送至鸡舍前部，通过捡蛋机集中至鸡舍前部，减少工人的工作量，增加工作效率；
●The egg collector can automatically collect eggs from the rear of the chicken house to the front of the chicken house through an egg conveyor belt, and then collect them at the front of the chicken house through an egg picker, reducing the workload of workers and increasing work efficiency;
●龙门式喂料机性价比高，结构简单，行驶稳定，使用寿命长，下料均匀，能达到良好的饲养效果；
●The gantry feeder has high cost performance, simple structure, stable driving, long service life, uniform feeding, and can achieve good feeding effect;
自动清粪型自动化蛋鸡笼养设备/Automatic layer cage equipment with auto manure cleaning syster
可选配粪带清粪式或刮粪机出粪，特点如下
Optional manure belt cleaning or manure scraper discharge, features as follows
●需要的要求条件，地面水平；
●Required conditions: ground level;
●清粪带式出粪，技术成熟，使用方便，可直接将鸡粪传送至预定高度，方便装车运输处理；
● The manure conveyor is a mature technology and easy to use. It can directly convey chicken manure to a predetermined height for easy loading and transportation.
●刮粪机式出粪，可将笼内粪便运输到舍外，集中堆放处理，成本低廉，使用方便。
● The manure scraper type manure discharge can transport the manure in the cage to the outside of the house for centralized stacking and treatment. It is low-cost and easy to use.
阶梯式蛋鸡笼-捡蛋机 阶梯式蛋鸡笼-清粪机
阶梯式蛋鸡笼-喂料机 阶梯式蛋鸡笼-四层
蛋鸡A型阶梯养殖笼技术参数/Technical parameters of A-type ladder breeding cage for laying hens
